Model G
The Model G are flapper type float valves that, when opened, offers an unobstructed bore through the float valve. The uniquely designed flapper closes rapidly to prevent shavings from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints.
- Integral bodies made using a cast alloy steel body ≤ 22 Rockwell C Hardness
- Flapper and seal retainer made using stainless steel material
- H2S/Hi-Temp service
- Highly corrosion resistant
- Serialized for 100% traceability
- Availability of MTR’s
Standard Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480151422 | 1F-2R | 2.0 | Add to Quote |
| 480152432 | 2F-3R | 3.5 | Add to Quote |
| 480153400 | 3F | 5.0 | Add to Quote |
| 480153600 | 3.5IF | 5.5 | Add to Quote |
| 480154200 | 4R | 7.0 | Add to Quote |
| 480154400 | 4F | 8.0 | Add to Quote |
| 480155200 | 5R | 9.0 | Add to Quote |
| 480155462 | 5F-6R | 18.0 | Add to Quote |
H2S/High Temp Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480311422 | 1F-2R | 2.0 | Add to Quote |
| 480312432 | 2F-3R | 3.5 | Add to Quote |
| 480313400 | 3F | 5.0 | Add to Quote |
| 480313600 | 3.5IF | 5.0 | Add to Quote |
| 480314200 | 4R | 7.0 | Add to Quote |
| 480314400 | 4F | 8.0 | Add to Quote |
| 480315200 | 5R | 9.0 | Add to Quote |
| 480315462 | 5F-6R | 18.0 | Add to Quote |
Model GA
The Model GA Pressure-Monitoring flapper type float valves are indistinguishable from the Model G with the exception of a tungsten-carbide insert in the flapper valve.
The Model GA Pressure-Monitoring flapper-type float valve is indistinguishable from the Model G with the exception of a tungsten-carbide insert in the flapper valve. The insert has a quarter-inch orifice through the center that allows for differential pressure monitoring. The orifice also allows for partial automatic filling of the drill pipe during run in.
Standard Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480161422 | 1F-2R | 2.0 | Add to Quote |
| 480162432 | 2F-3R | 3.5 | Add to Quote |
| 480163400 | 3F | 5.0 | Add to Quote |
| 480163600 | 3.5IF | 5.0 | Add to Quote |
| 480164200 | 4R | 7.0 | Add to Quote |
| 480164400 | 4F | 8.0 | Add to Quote |
| 480165200 | 5R | 9.0 | Add to Quote |
| 480165462 | 5F-6R | 18.0 | Add to Quote |
H2S/High Temp Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480261422 | 1F-2R | 2.0 | Add to Quote |
| 480262432 | 2F-3R | 3.5 | Add to Quote |
| 480263400 | 3F | 5.0 | Add to Quote |
| 480263600 | 3.5IF | 5.0 | Add to Quote |
| 480264200 | 4R | 7.0 | Add to Quote |
| 480264400 | 4F | 8.0 | Add to Quote |
| 480265200 | 5R | 9.0 | Add to Quote |
| 480265462 | 5F-6R | 18.0 | Add to Quote |
Model GC
The Model GC Automatic-Fill flapper-type float valve incorporates a unique self-releasing key assembly that holds the flapper partially open during run in, allowing the pipe to fill from the bottom.
The Model GC Automatic-Fill flapper-type float valve incorporates a unique self-releasing key assembly that holds the flapper partially open during run in, allowing the pipe to fill from the bottom. This eliminates the need for filling the drill pipe from the top, saving time and money. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints while avoiding the environmental and safety risks related to having mud on the rig floor. The valve can be run with the automatic-fill option or in the standard, closed position.
Standard Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480192432 | 2F-3R | 3.5 | Add to Quote |
| 480163400 | 3F | 5.0 | Add to Quote |
| 480163600 | 3.5IF | 5.0 | Add to Quote |
| 480164200 | 4R | 7.0 | Add to Quote |
| 480164400 | 4F | 8.0 | Add to Quote |
| 480165200 | 5R | 9.0 | Add to Quote |
| 480165462 | 5F-6R | 18.0 | Add to Quote |
H2S/High Temp Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480262432 | 2F-3R | 3.5 | Add to Quote |
| 480263400 | 3F | 5.0 | Add to Quote |
| 480263600 | 3.5IF | 5.0 | Add to Quote |
| 480264200 | 4R | 7.0 | Add to Quote |
| 480264400 | 4F | 8.0 | Add to Quote |
| 480265200 | 5R | 9.0 | Add to Quote |
| 480265462 | 5F-6R | 18.0 | Add to Quote |
Model G-10 – 10,000 PSI
The Model G-10 are flapper type float valves that, when opened, offers an unobstructed bore through the float valve. The uniquely designed flapper closes rapidly to prevent shavings from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints.
- Integral bodies made using a cast alloy steel body ≤ 22 Rockwell C Hardness
- Flapper and seal retainer made using stainless steel material
- H2S/Hi-Temp service
- Highly corrosion resistant
- Serialized for 100% traceability
- Availability of MTR’s
Standard Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480192432-10M | 2F-3R | 3.5 | Add to Quote |
| 480163600-10M | 3.5IF | 5.5 | Add to Quote |
| 480164200-10M | 4R | 7.73 | Add to Quote |
| 480165200-10M | 5R | 9.0 | Add to Quote |
| 480165462-10M | 5F-6R | 18.0 | Add to Quote |
Model G-15 – 15,000 PSI
The Model G-15 are flapper type float valves that, when opened, offers an unobstructed bore through the float valve. The uniquely designed flapper closes rapidly to prevent shavings from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control. The valve will fully open when the first joint is raised from the hole, preventing pulling wet joints.
- Integral bodies made using a cast alloy steel body ≤ 22 Rockwell C Hardness
- Flapper and seal retainer made using stainless steel material
- H2S/Hi-Temp service
- Highly corrosion resistant
- Serialized for 100% traceability
- Availability of MTR’s
Standard Service
| Assembly | Size | Weight (lbs.) | |
|---|---|---|---|
| 480192432-10M | 2F-3R | 3.5 | Add to Quote |
| 480163600-10M | 3.5IF | 5.5 | Add to Quote |
| 480164200-10M | 4R | 7.73 | Add to Quote |
| 480165200-10M | 5R | 9.0 | Add to Quote |
| 480165462-10M | 5F-6R | 18.0 | Add to Quote |
Model GS

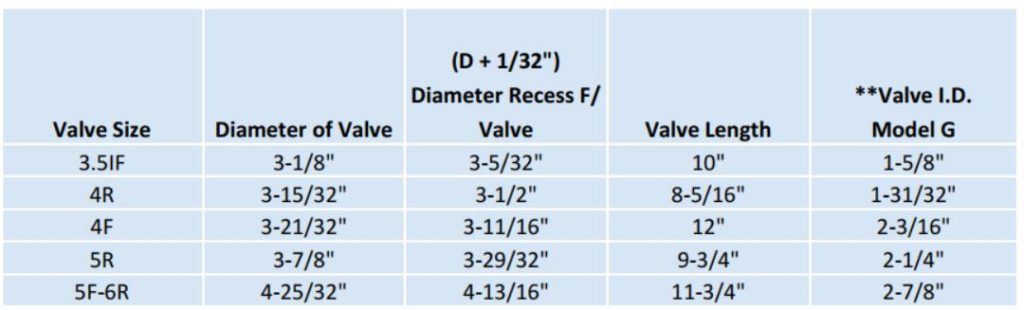

The Model GS flapper-type float valve is designed for high flowing corrosive wells. Its unique flapper designed with a relief groove backed by a safe-guard pocket. In addition, the flapper protects the pin and spring from excessive wear. The Model GS flapper-type drill pipe float valve has an ID maximized to allow for the most flow possible while maintained its rated pressure. This drill pipe float valve has the ability to run two valves at once *Stackable*.
Standard Service
