Introducing the Keystone Double Latch Single Joint Elevator. These Elevators feature an ergonomic latch lock design. The latch lock mechanism latches around the door lug pin for confirmed closure. In addition, it includes a safety latch lock pin for added mitigation of potential dropped tubular.
- Available in bottleneck or square shoulder configurations, sizes range from 2 3/8” – 22”
- SR3 Data Book/Material Test Reports
- Made with Domestic Castings
We design and precision-machine all of our elevators to meet and exceed API Standards, with KET and the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Line of Double Latch Single Joint Elevators
Part Numbers
| Part No | Range | Weight | |
|---|---|---|---|
| E20030DL | 4’’ – 5 7/8’’ | 67.00 | Add to Quote |
| E20040DL | 5-1/2”- 8-5/8” | 78.00 | Add to Quote |
| E20050DL | 9 5/8’’ – 10 3/4’’ | 93.00 | Add to Quote |
| E20060DL | 11 3/4’’ – 14’’ | 114.00 | Add to Quote |
| E20065DL | 16’’- 20’’ | 130.00 | Add to Quote |

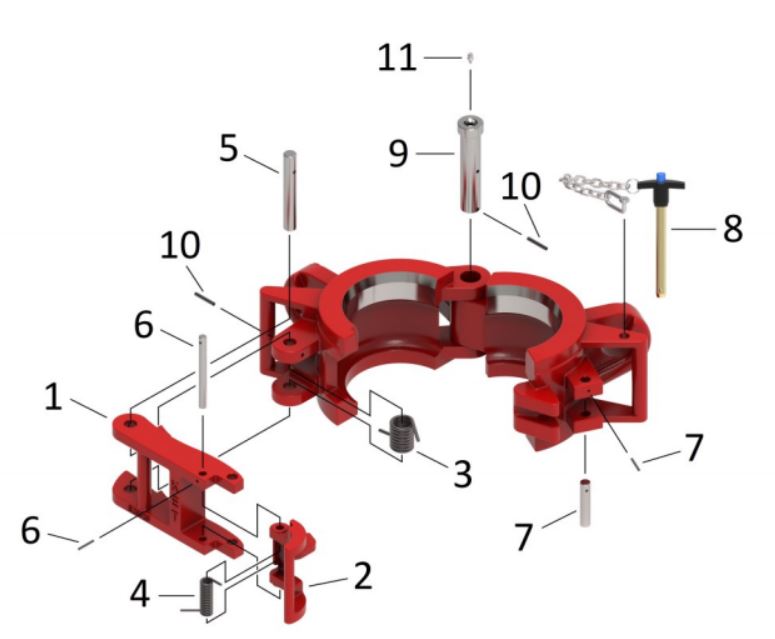

Replacement Parts
| KET# | #Req | Item | Description | Spares | Weight (lbs) | |
|---|---|---|---|---|---|---|
| E20026 | 1 | 1 | LATCH-E20030, E20040, E20050, E20060, E20065 | 6.00 | Add to Quote | |
| E20026-LL | 1 | 2 | LATCH LOCK-E20030, E20040, E20050, E20060, E20065 | 3.00 | Add to Quote | |
| E39-034 | 1 | 3 | LATCH SPRING-E20030, E20040, E20050, E20060, E20065 | 2 | 0.20 | Add to Quote |
| E39-034-LL | 1 | 4 | LATCH LOCK SPRING-E20030, E20040, E20050, E20060, E20065 | 2 | .20 | Add to Quote |
| E39-050 | 1 | 5 | LATCH PIN | 1 | .37 | Add to Quote |
| E39-050-2 | 1 | 6 | LATCH LOCK PIN | 1 | .37 | Add to Quote |
| E39-050-3 | 1 | 7 | DOOR LUG PIN | .20 | Add to Quote | |
| E39-051-8 | 1 | 8 | SAFETY LATCH LOCK PIN ASSY | 1 | .37 | Add to Quote |
| E39-052 | 1 | 9 | HINGE PIN | 1 | 1.00 | Add to Quote |
| P316RP | 2 | 10 | HINGE PIN RETAINER—BOTH | .10 | Add to Quote | |
| E316-TI | 1 | 11 | GREASE ZERT | .10 | Add to Quote |
