Keystone Casing Slips

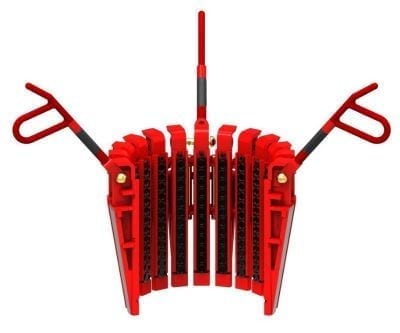

The KET CMSXL, CMS-3, and UC-3 Casing Slips are designed to be used when running casing. The slip’s multi-segment-hinged design provides a full wrap-around to help prevent damage to the casing. By adding or subtracting segments and inserts the slip can accommodate 6 5/8” – 30” O.D. casing. These casing slips are manufactured from heat-treated alloy steel, increasing strength and resistance to wear.

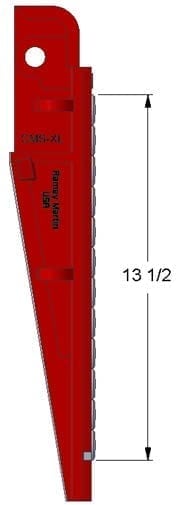

KET CMSL slips have an API taper of 4″/ft. on the diameter. However, the KET CMS-3 has a 3″/ft. taper. All KET Slips are load rated and equipped with safety flex handles.
Our slips are designed and precision-machined to meet and exceed API Standards, with the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Line of Casing Slips
KET CMSXL and CMS-3 Casing Slips Complete
| Part No | Type | Casing O.D. | WT. Comp. | Total Seg | Hinge Pins | |
|---|---|---|---|---|---|---|
| A14-111-F | CMSXL | 6 5/8” | 196 | 12 | 11 | Add to Quote |
| A14-112-F | CMSXL | 7″ | 184 | 12 | 11 | Add to Quote |
| A14-113-F | CMSXL | 7 5/8” | 166 | 12 | 11 | Add to Quote |
| A14-114-F | CMSXL | 8 5/8” | 181 | 13 | 12 | Add to Quote |
| A14-115-F | CMSXL | 9 5/8” | 192 | 14 | 13 | Add to Quote |
| A14-116-F | CMSXL | 10 3/4” | 209 | 15 | 14 | Add to Quote |
| A14-117-F | CMSXL | 11 3/4” | 260 | 17 | 16 | Add to Quote |
| A14-118-F | CMSXL | 13 3/8” | 247 | 18 | 17 | Add to Quote |
| A14-119-F | CMSXL | 16” | 308 | 21 | 20 | Add to Quote |
| A14-120-F | CMSXL | 18 5/8” | 367 | 25 | 24 | Add to Quote |
| A14-121-F | CMSXL | 20” | 383 | 26 | 25 | Add to Quote |
| A14-122-F | CMSXL | 24” | 443 | 30 | 29 | Add to Quote |
| A14-123-F | CMSXL | 26” | 486 | 33 | 32 | Add to Quote |
| A14-124-F | CMSXL | 30” | 546 | 37 | 36 | Add to Quote |
| A14-134-F | CMS-3 | 9-5/8” | 178 | 14 | 13 | Add to Quote |
| A14-135-F | CMS-3 | 10-3/4” | 194 | 15 | 14 | Add to Quote |
| A14-136-F | CMS-3 | 11-3/4” | 243 | 17 | 16 | Add to Quote |
| A14-137-F | CMS-3 | 13-3/8” | 229 | 18 | 17 | Add to Quote |
| A14-138-F | CMS-3 | 16” | 287 | 21 | 20 | Add to Quote |
| A14-139-F | CMS-3 | 18-5/8” | 342 | 25 | 24 | Add to Quote |
| A14-140-F | CMS-3 | 20” | 357 | 26 | 25 | Add to Quote |
| A14-141-F | CMS-3 | 24” | 413 | 30 | 29 | Add to Quote |
| A14-142-F | CMS-3 | 26” | 453 | 33 | 32 | Add to Quote |
| A14-143-F | CMS-3 | 30” | 509 | 37 | 36 | Add to Quote |
NOTE: ALL SLIPS 9 5/8” AND LARGER ARE FURNISHED WITH 4 OR MORE HANDLES. ALL PARTS ARE INTERCHANGEABLE WITH CORRESPONDING DESIGN TYPE “CMSXL” CASING
KET CMSXL and CMS-3 Button Inserts
| Part No | Type | Casing O.D. | WT. Comp. | Total Seg | Hinge Pins | |
|---|---|---|---|---|---|---|
| A14-628-144 | CMSXL | 6 5/8” | 196 | 12 | 11 | Add to Quote |
| A14-619-144 | CMSXL | 7″ | 184 | 12 | 11 | Add to Quote |
| A14-630-144 | CMSXL | 7 5/8” | 166 | 12 | 11 | Add to Quote |
| A14-630-156 | CMSXL | 8 5/8” | 181 | 13 | 12 | Add to Quote |
| A14-518-168 | CMSXL | 9 5/8” | 192 | 14 | 13 | Add to Quote |
| A14-630-180 | CMSXL | 10 3/4” | 209 | 15 | 14 | Add to Quote |
| A14-627-204 | CMSXL | 11 3/4” | 260 | 17 | 16 | Add to Quote |
| A14-630-216 | CMSXL | 13 3/8” | 247 | 18 | 17 | Add to Quote |
| A14-631-252 | CMSXL | 16” | 308 | 21 | 20 | Add to Quote |
| A14-626-300 | CMSXL | 18 5/8” | 367 | 25 | 24 | Add to Quote |
| A14-631-312 | CMSXL | 20” | 383 | 26 | 25 | Add to Quote |
| A14-631-360 | CMSXL | 24” | 443 | 30 | 29 | Add to Quote |
| A14-631-396 | CMSXL | 26” | 486 | 33 | 32 | Add to Quote |
| A14-631-444 | CMSXL | 30” | 546 | 37 | 36 | Add to Quote |
| A14-513-168 | CMS-3 | 9-5/8” | 178 | 14 | 13 | Add to Quote |
| A14-630-180 | CMS-3 | 10-3/4” | 194 | 15 | 14 | Add to Quote |
| A14-627-204 | CMS-3 | 11-3/4” | 243 | 17 | 16 | Add to Quote |
| A14-630-216 | CMS-3 | 13-3/8” | 229 | 18 | 17 | Add to Quote |
| A14-631-252 | CMS-3 | 16” | 287 | 21 | 20 | Add to Quote |
| A14-626-300 | CMS-3 | 18-5/8” | 342 | 25 | 24 | Add to Quote |
| A14-631-312 | CMS-3 | 20” | 357 | 26 | 25 | Add to Quote |
| A14-631-360 | CMS-3 | 24” | 413 | 30 | 29 | Add to Quote |
| A14-631-396 | CMS-3 | 26” | 453 | 33 | 32 | Add to Quote |
| A14-631-444 | CMS-3 | 30” | 509 | 37 | 36 | Add to Quote |
Replacement Parts for CMS & CPS Slips
| Part No | Item # | Description | Ref. # | **Spares | Wt. | |
|---|---|---|---|---|---|---|
| A14-105 | 1 | HANDLE PIN w/WASHER & COTTER | 3769 | 3 | .50 | Add to Quote |
| A14-106 | 2 | HINGE PIN w/COTTER | 2525 | 2 | .60 | Add to Quote |
| A14-100 | 3 | RIGHT HAND SEGMENT f/CMSXL SLIP | 5320 | 12.00 | Add to Quote | |
| A14-148 | 3 | RIGHT HAND SEGMENT f/CMS-3” SLIP | N/A | 11.00 | Add to Quote | |
| A14-107 | 4 | INTERMEDIATE SEGMENT f/CMSXL SLIP | 5322 | 12.00 | Add to Quote | |
| A14-149 | 4 | INTERMEDIATE SEGMENT f/CMS-3” SLIP N/A | N/A | 11.00 | Add to Quote | |
| A14-101 | 5 | LEFT HAND SEGMENT f/CMSXL SLIP | 5321 | 12.00 | Add to Quote | |
| A14-150 | 5 | LEFT HAND SEGMENT f/CMS-3” SLIP | N/A | 11.00 | Add to Quote | |
| 100100 | 6 | SAFETY FLEX HANDLE | N/A | 3 | 4.00 | Add to Quote |
| A14-090 | 7 | BUTTON RETAINER SCREW | N/A | .05 | Add to Quote | |
| 8 | BUTTON INSERTS (SEE TABLE ABOVE) | N/A | VARIES |
ALL PARTS ARE INTERCHANGEABLE WITH CORRESPONDING DESIGN TYPE “CMSXL” SLIPS
**RECOMMENDED SPARE PARTS FOR 1 YEAR OPERATION
*FOR RECOMMENDED SPARES INCLUDE 1 SET OF INSERTS FOR EACH PIPE SIZE
KET CPS Conductor Pipe Slips
| Part No | Pipe O.D. | Wt. Complete | Total Segments | Hinge Spacers | |
|---|---|---|---|---|---|
| A14-244 | 24” | 276 | 13 | 12 | Add to Quote |
| A14-266 | 26” | 296 | 14 | 13 | Add to Quote |
| A14-330 | 30” | 319 | 16 | 15 | Add to Quote |
Inserts – KET CPS Conductor Pipe Slips
| Part No | Pipe O.D. | Wt. Complete | Total Segments | Hinge Spacers | |
|---|---|---|---|---|---|
| 2631-156 | 24” | 276 | 13 | 12 | Add to Quote |
| 2631-168 | 26” | 296 | 14 | 13 | Add to Quote |
| 2631-192 | 30” | 319 | 16 | 15 | Add to Quote |
NOTE: ALL PARTS ARE INTERCHANGEABLE WITH CMSXL SLIP
