Keystone Slim Hole Slips

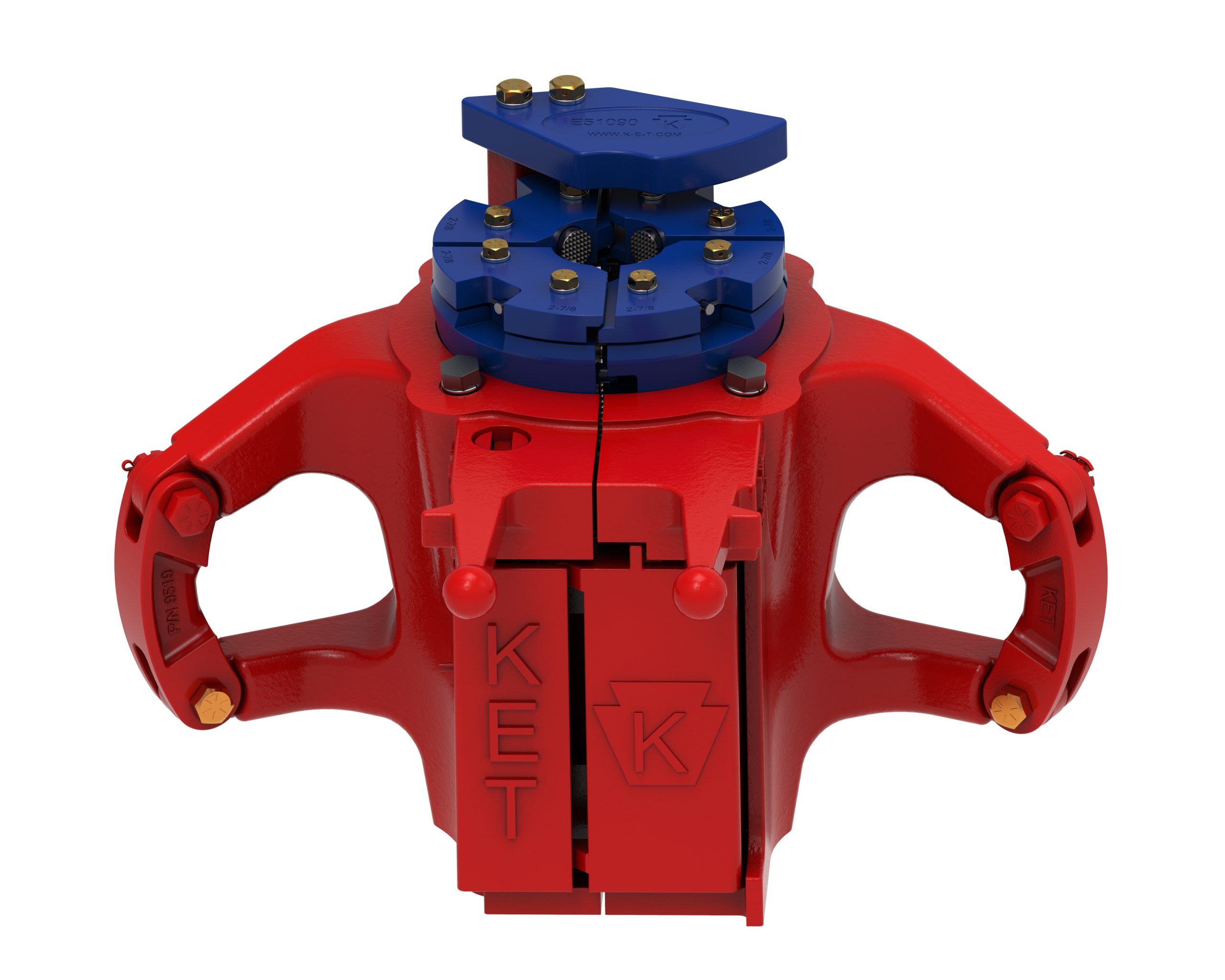

KET Slim Hole Slip Type Elevator is your tool for small diameter slim hole drill pipe. Available in SH-MYT, SH-YT, and SH-HYT. Elevators are designed for small diameter slim hole pipe with capacities of 40, 75, or 150 Tons, the SHST is packed with 4 retractable inserts and 4 interlocking setting plates.
The latest Interlocking plate technology ensures the slip sets and bites evenly on the pipe as the retractable inserts engage the tube when closing the elevator.
We design and precision-machine all of our elevators to meet and exceed API Standards, with KET and the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Range for the Slim Hole Slip Type Elevator.
Slim Hole Slips
The Slim Hole Slip Segments fit 2 3/8-2 7/8″ MYT, 2 3/8-3 1/2″ YT, and 2 3/8-3 1/2″ HYT Elevators.
| Part # | Item # | Description | # Req | Weight | |
|---|---|---|---|---|---|
| E39174-SH | SLIM HOLE SLIP SEGMENTS FOR MYT, YT, OR HYT ELEVATORS (MATCHED SET OF 4) | 4 | 51.00 | Add to Quote |
Recommended spares include 2 sets of inserts and 1 setting ring for each pipe size to be run.
Slim Hole Slip Setting Plate Assemblies
The Setting Plate Assemblies come with (setting plate, setting plate bolts, retractable inserts, and rubber bushing).
| Part # | Description | Weight | ||
|---|---|---|---|---|
| E39214-1-SH | 2-3/8″ SH SETTING PLATE ASSEMBLY | N/A | Add to Quote | |
| E39214-2-SH | 2-7/8″ SH SETTING PLATE ASSEMBLY | N/A | Add to Quote | |
| E39214-3-SH | 3-1/2 SH SETTING PLATE ASSEMBLY | N/A | Add to Quote |
Recommended spares include 2 sets of inserts and 1 setting ring for each pipe size to be run.
Slim Hole Slip Setting Plates
| Part # | Item # | Description | # Req | Weight | |
|---|---|---|---|---|---|
| E39214-1-SH-1 | 2 3/8” SH SETTING PLATE (ONLY) – 4 NEEDED PER SET | 4 | N/A | Add to Quote | |
| E39214-2-SH-1 | 2 7/8” SH SETTING PLATE (ONLY) – 4 NEEDED PER SET | 4 | N/A | Add to Quote | |
| E39214-3-SH-1 | 3 1/2” SH SETTING PLATE (ONLY) – 4 NEEDED PER SET | 4 | N/A | Add to Quote |
Recommended spares include 2 sets of inserts and 2 setting rings for each pipe size to be run.

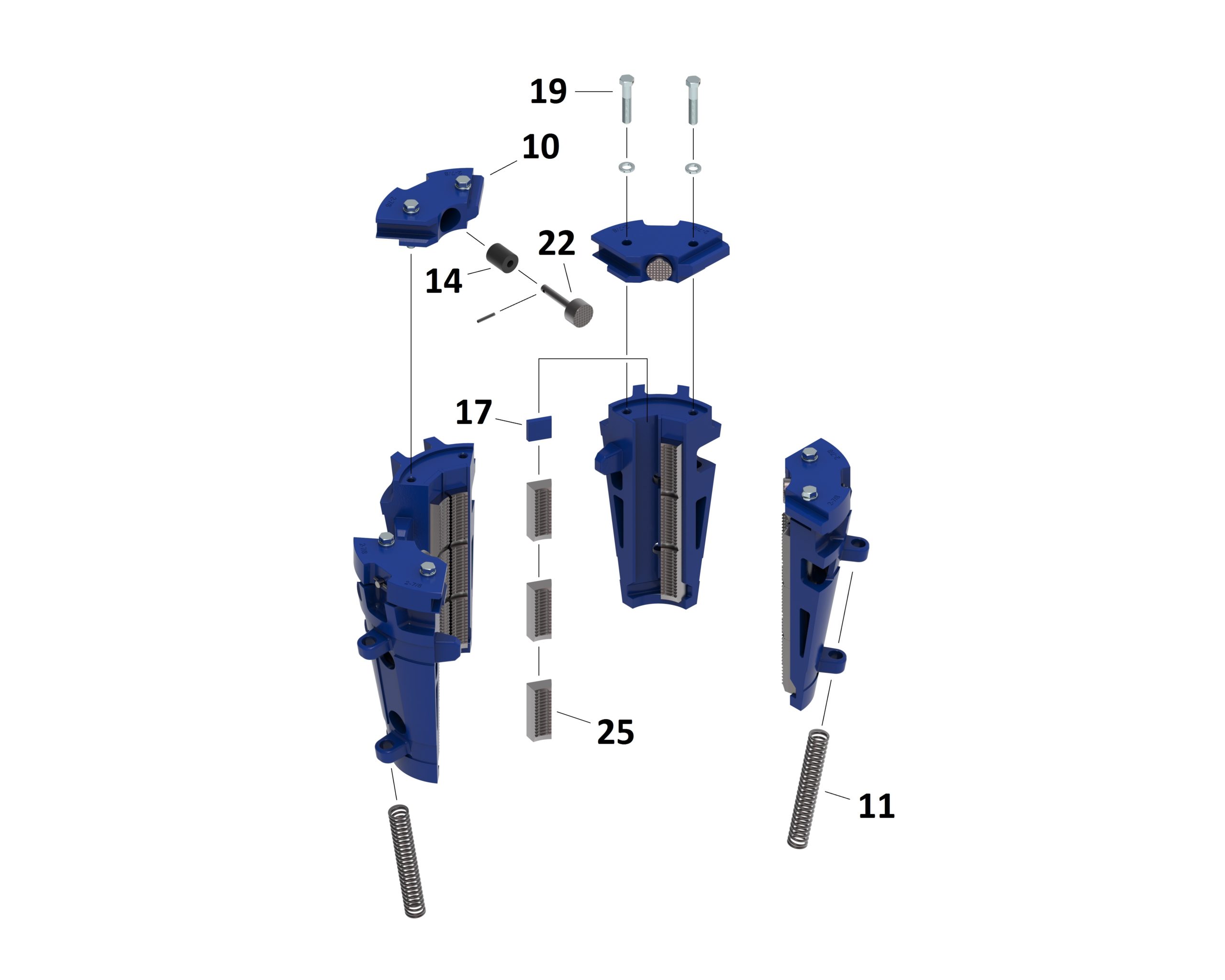

Slim Hole Slip Replacement Parts
| Part No. | Item # | Qty | Description | Spares | Wt. | Add To Quote |
|---|---|---|---|---|---|---|
| E23113 | 11 | 4 | SLIP SPRING | Add to Quote | ||
| E27696 | 14 | 4 | RUBBER BUSHING | Add to Quote | ||
| E27697-SH | 19 | 8 | SETTING PLATE BOLT W/ WASHER | Add to Quote | ||
| E27684 | 22 | 4 | RETRACTABLE INSERT | Add to Quote |
