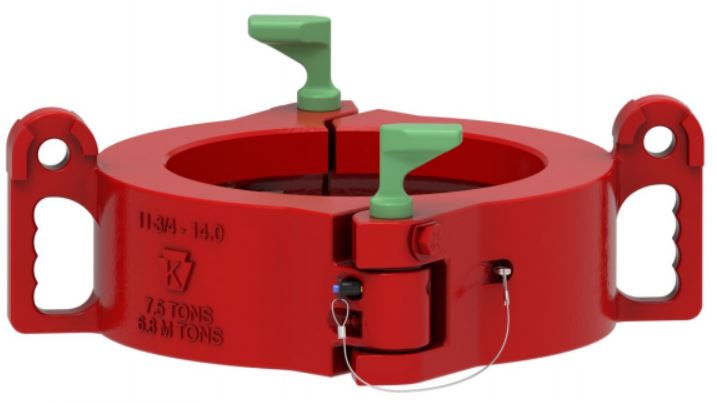

Introducing the Keystone Double Pin Single Joint Elevator. These elevators feature an ergonomic design allowing the unit to open from either hinge. With these elevators, the bail tilts will not obstruct the “derrick man” from being able to reach the hinge handle in the “monkey board”. In addition, a hinge pin rises up and turns, locking itself in the up position, which allows the elevator to open and close freely. The Keystone Double Pin Single Joint Elevator is equipped with safety retainer pin for secondary retention.
- SR3 Data Book/Material Test Reports
- Made with domestic castings
We design and precision-machine all of our elevators to meet and exceed API Standards, with KET and the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Line of Double Pin Single Joint Elevators
Part Numbers
| Part No | Rating | Range | Weight |
|---|---|---|---|
| E20073 | 7.5 TON | 4”- 6” | 63.00 |
| E20075 | 7.5 TON | 6 5/8’’ – 8 5/8’ | 83.00 |
| E20077 | 7.5 TON |
9”-10-3/4”
|
96.00 |
| E20079 | 7.5 TON | 11 3/4’’ – 14’’ | 135.00 |
| E20081 | 10 TON | 16’’ – 20’’ | 230.00 |

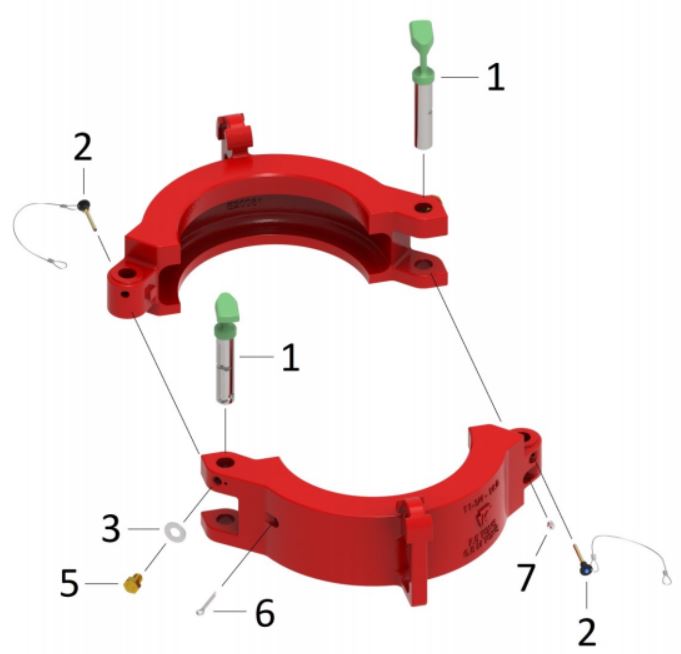

Replacement Parts
| KET# | #Req | Item | Description | Spares | Weight (lbs) | |
|---|---|---|---|---|---|---|
| E20072 | 2 | 1 | HINGE PIN | 2.00 | Add to Quote | |
| E20101 | 2 | 2 | HINGE PIN SAFETY LATCH PIN | 2 | 0.20 | Add to Quote |
| E20102 | 2 | 3 | 11/16” LOCK-TAB WASHER | 2 | 0.10 | Add to Quote |
| E20103 | 1 | 4 | HINGE PIN RET. BOLT 3/4” LONG (FRAME SIZES E20073-E20077) | 0.25 | Add to Quote | |
| E20103-1 | 1 | 5 | HINGE PIN RET. BOLT 7/8” LONG (FRAME SIZES E20079-E20081) | 0.25 | Add to Quote | |
| E20104 2 | 2 | 6 | COTTER PIN | 2 | 0.10 | Add to Quote |
| E940308-1 | 2 | 7 | GREASE ZERT | 0.10 | Add to Quote |
