Dies for Tubing Tongs
We manufacture a wide variety of tong dies for manual and power tongs, including dies for the ST-80 Iron Roughneck.
KET inserts and dies are manufactured from quality materials and precision-machined to exacting tolerances. They are heat-treated to industry standards to provide the best wear and resistance for the harshest of environments. The inner ductile core minimizes the shock of impact and torque.
*We stencil all inserts and dies manufactured by Keystone with a batch and heat number for complete traceability.
Fine tooth and non-marking available upon request for some tong die.
| Part No. | Description | # Set | WT. | ||
|---|---|---|---|---|---|
| A04-119 | K-20 – 3/4″ (1.050″) | 3 | 1.13 | Add to Quote | |
| A04-120 | K-20 – 1″ (1.315″) | 3 | 1.07 | Add to Quote | |
| A04-121 | K-20 – 1-1/4″ (1.660″) | 3 | .94 | Add to Quote | |
| A04-122 | K-20 – 1-1/2″ (1.900″) | 3 | .75 | Add to Quote | |
| A04-123 | K-20 – 2-1/16″ | 3 | .63 | Add to Quote | |
| A04-124 | K-20 – 2-3/8″ | 3 | .41 | Add to Quote | |
| A05-129 | K-25 – 3/4″ (1.050″) | 3 | 1.75 | Add to Quote | |
| A05-120 | K-25 – 1″ (1.315″) | 3 | 1.63 | Add to Quote | |
| A05-121 | K-25 – 1-1/4″ (1.660″) | 3 | 1.50 | Add to Quote | |
| A05-122 | K-25 – 1-1/2″ (1.900″) | 3 | 1.32 | Add to Quote | |
| A05-123 | K-25 – 2-1/16″ | 3 | 1.30 | Add to Quote | |
| A05-124 | K-25 – 2-3/8″ | 3 | 1.25 | Add to Quote | |
| A05-125 | K-25 – 2-1/2″ | 3 | .95 | Add to Quote | |

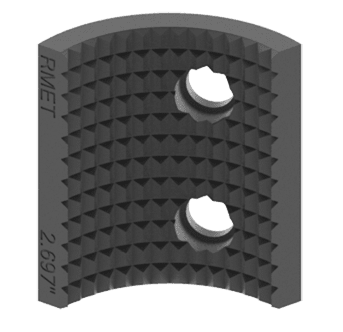

| A05-126 | K-25 – 2.697″ | 3 | .63 | Add to Quote | |
| A05-127 | K-25 – 2.776″ | 3 | .55 | Add to Quote | |
| A05-128 | K-25 – 2-7/8″ | 3 | .58 | Add to Quote | |
| A06-133 | K-30 – 1-1/4″ (1.660″) | 3 | 5.00 | Add to Quote | |
| A06-134 | K-30 – 1-1/2″ (1.900″) | 3 | 4.60 | Add to Quote | |
| A06-119 | K-30 – 2-1/16″ | 3 | 4.10 | Add to Quote | |
| A06-120 | K-30 – 2-3/8″ | 3 | 3.80 | Add to Quote | |
| A06-121 | K-30 – 2-7/8″ | 3 | 3.10 | Add to Quote | |
| A06-135 | K-30 – 3″ | 3 | 3.00 | Add to Quote | |
| A06-122 | K-30 – 3-1/16″ | 3 | 2.80 | Add to Quote | |
| A06-123 | K-30 – 3-1/8″ | 3 | 2.75 | Add to Quote | |
| A06-124 | K-30 – 3-1/4″ | 3 | 2.50 | Add to Quote | |
| A06-130 | K-30 – 3-3/8″ | 3 | 2.40 | Add to Quote | |
| A06-125 | K-30 – 3-1/2″ | 3 | 2.10 | Add to Quote | |
| A06-126 | K-30 – 3.668″ | 3 | 1.70 | Add to Quote | |
| A06-127 | K-30 – 3-3/4″ | 3 | 1.50 | Add to Quote | |
| A06-131 | K-30 – 3-7/8″ | 3 | 1.40 | Add to Quote | |
| A06-573 | K-50 & K-50HT — 2 3/8″ | 3 | 7.50 | Add to Quote | |
| A06-575 | K-50 & K-50HT — 2-7/8″ | 3 | 6.33 | Add to Quote | |
| A06-576 | K-50 & K-50HT — 3-1/2″ | 3 | 5.33 | Add to Quote | |
| A06-577 | K-50 & K-50HT — 3-3/4″ | 3 | 4.74 | Add to Quote | |
| A06-578 | K-50 & K-50HT — 4″ | 3 | 4.15 | Add to Quote | |
| A06-579 | K-50 & K-50HT — 4 1/8″ | 3 | 4.05 | Add to Quote | |
| A06-580 | K-50 & K-50HT — 4-1/2″ | 3 | 3.50 | Add to Quote | |
| A06-581 | K-50 & K-50HT — 4-3/4″ | 3 | 2.92 | Add to Quote | |
| A06-582 | K-50 & K-50HT — 5″ | 3 | 2.33 | Add to Quote | |
| A06-773 | K-70 — 2-7/8″ | 3 | 14.50 | Add to Quote | |
| A06-758 | K-70 – 3 1/2″ | 3 | 13.25 | Add to Quote | |
| A06-757 | K-70 – 4″ | 3 | 12.00 | Add to Quote | |
| A06-756 | K-70 – 4 1/2″ | 3 | 10.50 | Add to Quote | |
| A06-755 | K-70 – 4 3/4″ | 3 | 10.25 | Add to Quote | |
| A06-754 | K-70 – 5″ | 3 | 9.50 | Add to Quote | |
| A06-753 | K-70 – 5 1/2″ | 3 | 8.00 | Add to Quote | |
| A06-759 | K-70 – 5 3/4″ | 3 | 7.25 | Add to Quote | |
| A06-752 | K-70 – 6″ | 3 | 6.25 | Add to Quote | |
| A06-751 | K-70 – 6 5/8″ | 3 | 4.75 | Add to Quote |
ST-80 Iron Roughneck® Dies & Die Holders
| Part No. | Description | Ref# | WT. | ||
|---|---|---|---|---|---|

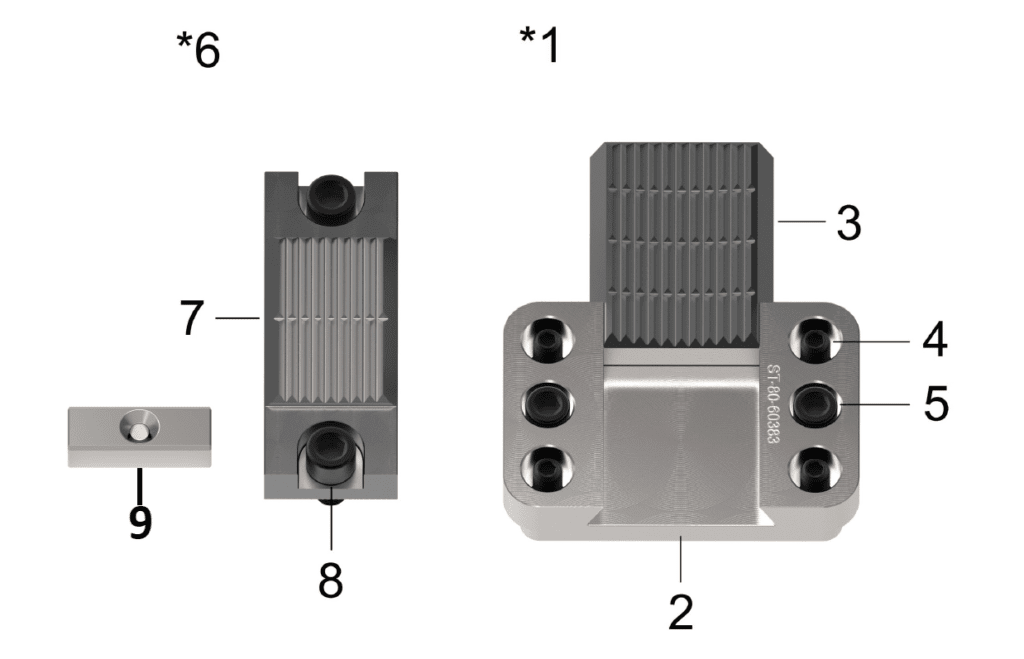

| AST-80-LD-ASSY | *1 | ST-80 DIE HOLDER ASSEMBLY WITH BOLTS | 30172029 | 7.16 | Add to Quote |
| AST-80-HOL | 2 | ST-80 LOWER DIE HOLDER ONLY | 30160383 | 7.16 | Add to Quote |
| AST-80-LD | 3 | ST-80 LOWER DIE EACH (NOTE: IT TAKES 2 PER SET) | 30160382 | 2.19 | Add to Quote |
| AST-80-LD CSH | 4 | ST-80 LOWER DIE HOLDER CORNER SOCKET HEAD SCREW | 50708-12-OC | Add to Quote | |
| AST-80-LD MSH | 5 | ST-80 LOWER DIE HOLDER MIDDLE SOCKET HEAD SCREW | 50108-14-C | Add to Quote | |
| AST-80-UD-SET | *6 | ST-80 UPPER DIE KIT W/2 DIES, BOLTS, & SOCKETS | 3017422 | 6.02 | Add to Quote |
| AST-80-US | 7 | ST-80 UPPER DIE EACH (NOTE: IT TAKS 2 PER SET) | 30160380-500 | 2.96 | Add to Quote |
| AST-U-B | 8 | ST-80 UPPER DIE BOLT ONLY | 55109-8-C | .87 | Add to Quote |
Iron Roughneck Tong Dies
| Part No. | Description | WT. | |
|---|---|---|---|
| AST-80LD-Set | ST-LOWER DIE SET W/BOLTS AND SOCKETS | 6.00 | Add to Quote |
| AST-80UD-SET | ST-80 UPPER DIE SET W/BOLTS AND SOCKET | 7.00 | Add to Quote |
| AC01-01-03 | MODEL 3080 IRON ROUGHNECK DIE | 2.25 | Add to Quote |
Power Tong Dies
| Part No. | Description | WT. | |
|---|---|---|---|
| A27494-1 | 2 3/8″ x 2 3/8″ POWER TONG DIE | 1.06 | Add to Quote |
| A27498-1 | 2 7/8″ x 2 7/8″ POWER TONG DIE | 1.06 | Add to Quote |
| A75-2327 | 2 7/8″ x 2 3/8″ POWER TONG REDUCER DIE | 1.62 | Add to Quote |
Drill Pipe Tong Dies
| Part No. | Description | WT. | |
|---|---|---|---|
| T6472 | 3/8″ x 5/8″ x 1 15/16″ TONG DIE | .10 | Add to Quote |
| T061624 | 3/8″ x 1″ x 2 1/2″ TONG DIE | .21 | Add to Quote |
| T6473 | 3/8″ x 1″ x 3 7/8″ TONG DIE | .32 | Add to Quote |

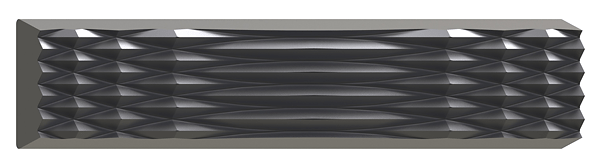

| T6473-8D | 3/8″ x 1″ x 3 7/8″ BLUE DIAMOND TONG DIE | .32 | Add to Quote |
| T4321 | 3/8″ x 1″ x 4 1/4″ TONG DIE | .35 | Add to Quote |
| T4516 | 3/8″ x 1″ x 5 3/4″ TONG DIE | .47 | Add to Quote |
| T1614 | 3/8″ x 1 1/4″ x 3 7/8″ TONG DIE | .39 | Add to Quote |
| T76 51250 | 3/8″ x 1 1/4″ x 5″ TONG DIE | .50 | Add to Quote |
| T1612 | 7/16″ x 1 1/4″ x 3 7/8″ TONG DIE | .46 | Add to Quote |
| T1612-BD | 7/16″ x 1 1/4″ x 3 7/8″ BLUE DIAMOND TONG DIE | .46 | Add to Quote |
| T24768-3 | 1/2″ x 1 1/4″ x 3 1/2″ TONG DIE | .50 | Add to Quote |
| T6485 | 1/2″ x 1″ x 3 7/8″ TONG DIE | .50 | Add to Quote |
| T24768-2 | 1/2″ x 1 1/4″ x 3 7/8″ TONG DIE | .54 | Add to Quote |
| T24678 6 | 1/2″ x 1 1/4″ x 3 7/8″ BLUE DIAMOND TONG DIE | .54 | Add to Quote |
| T16401-2 | 1/2″ x 1 1/4″ x 5″ TONG DIE | .69 | Add to Quote |
| T16401-6 | 1/2″ x 1 1/4″ x 5″ BLUE DIAMOND TONG DIE | .69 | Add to Quote |
| T16402-2 | 1/2″ x 1 1/4″ x 5 7/8″ TONG DIE | .82 | Add to Quote |
| T16402-6 | 1/2″ x 1 1/4″ x 5 7/8″ BLUE DIAMOND TONG DIE | .82 | Add to Quote |
| T16-22 | 9/16″ x 1 1/4″ x 3 7/8″ TONG DIE | .61 | Add to Quote |
| T76-51235 | 9/16″ x 1 1/4″ x 5″ TONG DIE | .78 | Add to Quote |
| T102037 | 5/8″ x 1 1/4″ x 3 7/8″ TONG DIE | .68 | Add to Quote |
| T102050 | 5/8″ x 1 1/4″ x 5″ TONG DIE | .87 | Add to Quote |
| T76-51257 | 5/8″ x 1 1/4″ x 5 7/8″ TONG DIE | 1.02 | Add to Quote |
| T1161255 | 11/16″ x 1 1/4″ x 5″ TONG DIE | .96 | Add to Quote |
| T6416446 | 11/16″ x 1 1/4″ x 5 7/8″ TONG DIE | 1.13 | Add to Quote |
| T122034 | 3/4″ x 1 1/4″ x 3 1/2″ TONG DIE | .75 | Add to Quote |
| T122037 | 3/4″ x 1 1/4″ x 3 7/8″ TONG DIE | .81 | Add to Quote |
| T76-61250 | 3/4″ x 1 1/4″ x 5″ TONG DIE | 1.05 | Add to Quote |
| T76-61257 | 3/4″ x 1 1/4″ x 5 7/8″ TONG DIE | 1.23 | Add to Quote |
| T132037 | 13/16″ x 1 1/4″ x 3 7/8″ TONG DIE | .88 | Add to Quote |
| T142037 | 7/8″ x 1 1/4″ x 3 7/8″ TONG DIE | .95 | Add to Quote |
| T142050 | 7/8″ x 1 1/4″ x 5″ TONG DIE | 1.23 | Add to Quote |
| T142057 | 7/8″ x 1 1/4″ x 5 7/8″ TONG DIE | 1.45 | Add to Quote |
| T162037 | 1″ x 1 1/4″ x 3 7/8″ TONG DIE | 1.25 | Add to Quote |
| T162050 | 1″ x 1 1/4″ x 5″ TONG DIE | 1.61 | Add to Quote |
| T162057 | 1″ x 1 1/4″ x 5 7/8″ TONG DIE | 1.80 | Add to Quote |
