The Keystone SJ series is a single-joint elevator is rated for 7.5 tons. The elevator can be bored to accommodate 18 degree tapered drill-pipe or square-shoulder casing and tubing.
We design and precision-machine all of our elevators to meet and exceed API Standards, with KET and the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
| Part No | Range | Weight | |
|---|---|---|---|
| E20035 | 2 3/8″ – 4″ | 45.00 | Add to Quote |
| E20030 | 4″ – 5 7/8″ | 67.00 | Add to Quote |
| E20040 | 5 1/2″ – 8 5/8″ | 75.00 | Add to Quote |
| E20050 | 9 5/8″ – 10 3/4″ | 93.00 | Add to Quote# |
| E20060 | 11 3/4″ – 14″ | 114.00 | Add to Quote |
| E20065 | 16″ – 20″ | 130.00 | Add to Quote |

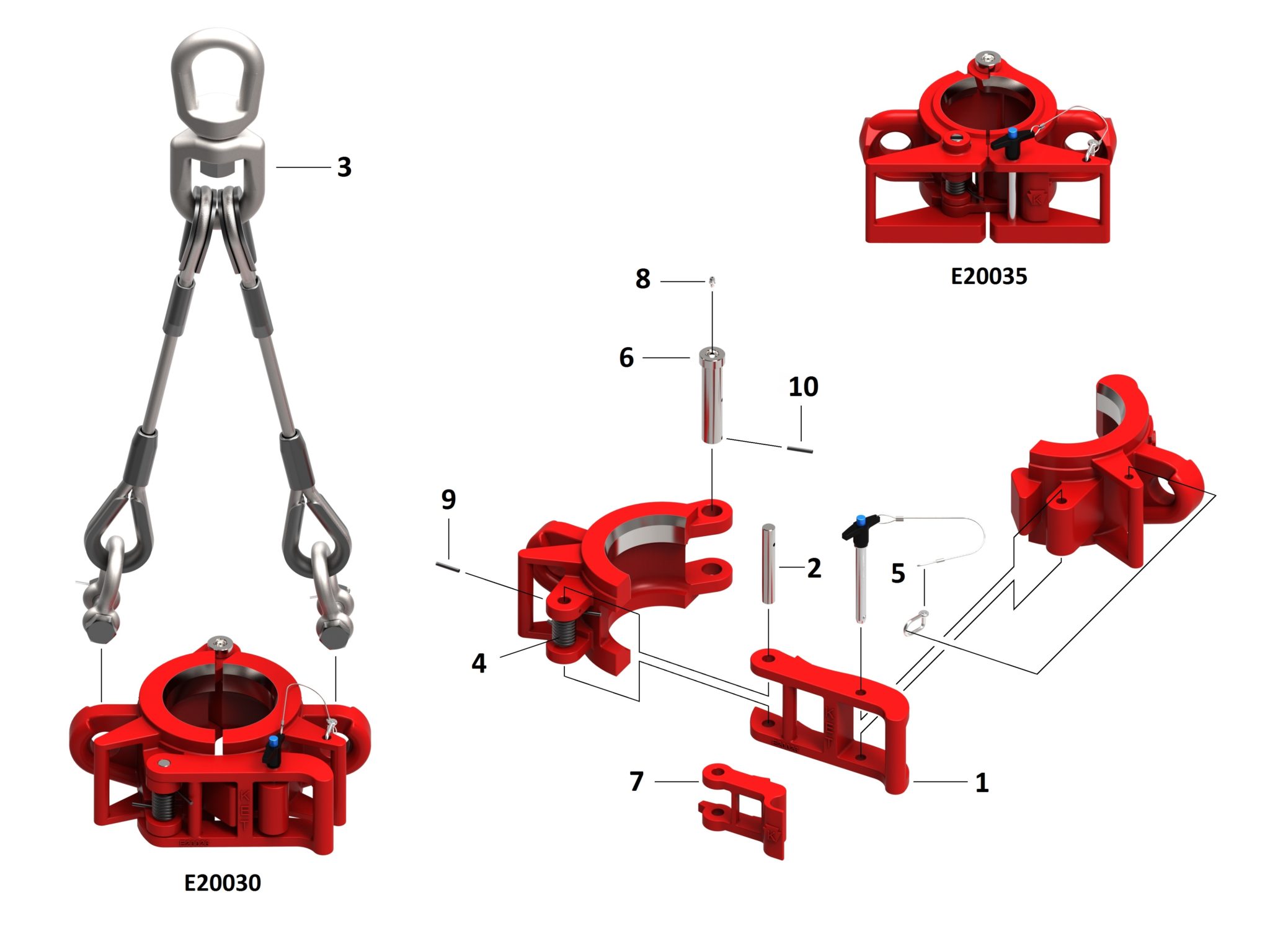

| Part# | Qty | Item | Description | Spares | Weight (lbs) | |
|---|---|---|---|---|---|---|
| E20026-C | 1 | 1 | LATCH-E20030 | 6.00 | Add to Quote | |
| E33035 | 1 | 2 | LATCH PIN-E20030 | 1 | .37 | Add to Quote |
| E39-198 | 1 | 2 | LATCH PIN-E20035 | 1 | .37 | Add to Quote |
| E34568 | 1 | 3 | SJ SWIVEL SUSPENSION ASSEMBLY | 1 | 29.00 | Add to Quote |
| E39-034 | 1 | 4 | LATCH SPRING-E20030 | 2 | .20 | Add to Quote |
| E7829-1 | 1 | 4 | LATCH SPRING-E20035 | 2 | .20 | Add to Quote |
| E39-051-8 | 1 | 5 | LATCH LOCK RETAINER PIN | 1 | .35 | Add to Quote |
| E39052 | 1 | 6 | HINGE PIN-BOTH | 1 | .10 | Add to Quote |
| E39-190 | 1 | 7 | LATCH-E20035 | 4.00 | Add to Quote | |
| E316-TI | 1 | 8 | TAP IN GREASE FITTING—BOTH | .10 | Add to Quote | |
| E316RP | 1 | 9 | LATCH PIN RETAINER—BOTH | .10 | Add to Quote | |
| P316RP | 1 | 10 | HINGE PIN RETAINER—BOTH | .10 | Add to Quote |
