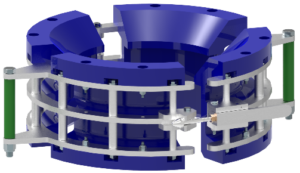

100, 200, & 300 Frame Casing Stabbing Guide
Heavy Duty Stabbing Guide

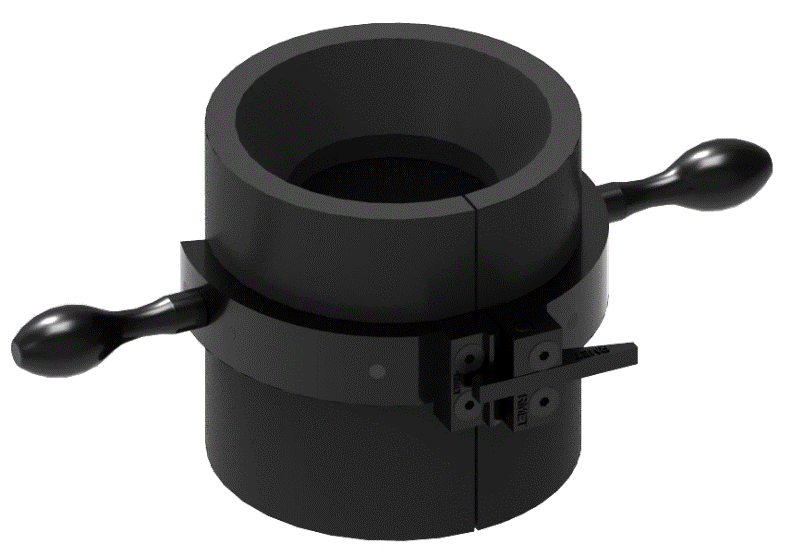

Standard Rubber Stabbing Guide
Keystone Stabbing Guides
Types of Stabbing Guides
KET offers two types of Drill Pipe Stabbing Guides, the Heavy Duty type which is recommended for drill pipe and also the Hydril® rubber type to be used on tubing. Stabbing Guides help to reduce damages to connections while making up connections.
The Heavy Duty Type features include:
- Polyurethane Inserts
- Lightweight Aluminum construction
- Corrosion Resistant Hardware
- Adjustable Latch Cam
- Range = 2 3/8” thru 8 ½” Tool joint OD
The Hydril® Rubber Type features include:
- One Piece Rubber Body
- Replaceable Latch & Catch
- Range = 3/4″ thru 4 1/2″
KET Heavy Duty Stabbing Guides
| Part No. | Insert Only/Set | Description | Weight (lbs.) Insert Set | Weight (lbs.) Assembly | |
|---|---|---|---|---|---|
| A02-502 | A02-521 | 1” CS | 1.36 | 4.60 | Add to Quote |
| A02-503 | A02-522 | 1-1/4” CS | 1.22 | 4.45 | Add to Quote |
| A02-504 | A02-523 | 1-1/2” CS | 1.15 | A02-504 A02-523 1-1/2” CS 1.15 4 | Add to Quote |
| A02-505 | A02-524 | 2-1/16” CS | 93 | 4.15 | Add to Quote |
| A02-506 | A02-525 | 2 3/8” CS 4.70# | 4.20 | 8.45 | Add to Quote |
| A02-507 | A02-526 | 2 3/8” PH-6 5.95# | 4.10 | 8.35 | Add to Quote |
| A02-508 | A02-527 | 2 7/8” CS | 3.75 | 7.95 | Add to Quote |
| A02-509 | A02-528 | 2 7/8” PH-6 7.90# | 3.60 | 7.80 | Add to Quote |
| A02-510 | A02-529 | 2 7/8” PH-6 8.70# | 3.55 | 7.80 | Add to Quote |
| A02-512 | A02-531 | 2 7/8” 8RD 6.5# | 3.45 | 7.70 | Add to Quote |
| A02-514 | A02-533 | 3 1/2” CS 9.3# – 10.3# | 3.06 | 7.30 | Add to Quote |
| A02-515 | A02-534 | 3 1/2” PH-6 12.95# | 2.70 | 6.95 | Add to Quote |
| A02-517 | A02-536 | 3 1/2” IF F/ 4 3/4” TJ | 2.18 | 6.45 | Add to Quote |
| A02-517-2 | A02-536-2 | 3 1/2” IF f/ 4 7/8” TJ | 2.06 | 6.30 | Add to Quote |
| A02-517-1 | A02-536-1 | 4” Full Hole | 1.60 | 5.85 | Add to Quote |
| A02-5306 | A02-5356 | XT-39 f/ 4 7/8” TJ | 2.06 | 6.30 | Add to Quote |
| A02-5308 | A02-5358 | XT-39 f/ 4 15/16 TJ | 2.03 | 6.25 | Add to Quote |
| A02-5309 | A02-5359 | XT-43 f/ 5 3/8” TJ | 13.10 | 19.90 | Add to Quote |
| A02-519 | A02-538 | 4 1/2” PH-6 15.50# | 1.70 | 5.95 | Add to Quote |
| A02-517-4 | A02-536-1 | 4-1/2” FH F/5-1/4” TJ | 10.00 | 18.00 | Add to Quote |
| A02-543 | A02-539 | 4 1/2” XH | 11.45 | 18.25 | Add to Quote |
| A02-5310 | A02-5360 | DRILL PIPE f/ 6 1/2” TJ | 10.70 | 17.50 | Add to Quote |
| A02-5311 | A02-5361 | DRILL PIPE f/ 7” TJ | 9.30 | 16.10 | Add to Quote |
| A02-5312 | A02-5362 | DRILL PIPE f/ 7 1/4” TJ | 8.80 | 15.60 | Add to Quote |
| A02-5313 | A02-5363 | DRILL PIPE f/ 8 1/4” TJ | 5.95 | 12.75 | Add to Quote |
| A02-5314 | A02-5364 | DRILL PIPE f/ 8 1/2” TJ | 5.45 | 12.25 | Add to Quote |
| A02-547 | A02-540 | 4 1/2” IF 6 5/8” TJ | 10.55 | 17.35 | Add to Quote |
| A02-545 | A02-541 | 5” PH-6 20.3# | 11.70 | 18.50 | Add to Quote |
| A02-546 | A02-542 | 5 1/2” PH-6 23# | 10.80 | 17.60 | Add to Quote |
KET Standard Rubber Stabbing Guides
Complete
| Part No. | Description | Weight | |
|---|---|---|---|
| A02-101 | 3/4” CS® STABBING GUIDE | 5.00 | Add to Quote |
| A02-102 | 1” CS® STABBING GUIDE | 4.50 | Add to Quote |
| A02-103 | 1 1/4” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-104 | 1 1/2” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-105 | 2 1/16” CS® STABBING GUIDE | 6.50 | Add to Quote |
| A02-106 | 2 3/8” CS® STABBING GUIDE | 6.00 | Add to Quote |
| A02-107 | 2 3/8” PH-6™ STABBING GUIDE | 6.00 | Add to Quote |
| A02-108 | 2 7/8” CS® STABBING GUIDE | 7.00 | Add to Quote |
| A02-109 | 2 7/8” PH-6™ 7.90# STABBING GUIDE | 6.50 | Add to Quote |
| A02-110 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-111 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (LARGE BODY) | 11.00 | Add to Quote |
| A02-112 | 2 7/8” 8RD 6.50# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-113 | 2 7/8” 8RD 6.50# STABBING GUIDE (LARGE BODY) | 10.50 | Add to Quote |
| A02-114 | 3 1/2” CS® 9.30# – 10.30# STABBING GUIDE | 10.00 | Add to Quote |
| A02-115 | 3 1/2” PH-6™ 12.95# STABBING GUIDE | 9.50 | Add to Quote |
| A02-117 | 3 1/2” IF STABBING GUIDE FOR 4 ¾” T.J. | 12.00 | Add to Quote |
| A02-117-3 | 3 1/2” IF STABBING GUIDE FOR 4 7/8” T.J | 12.00 | Add to Quote |
| A02-117-1 | 4” F.H. STABBING GUIDE FOR 5 ¼” T.J. | 12.00 | Add to Quote |
| A02-306 | XT-39 STABBING GUIDE FOR 4 7/8” T.J | 12.00 | Add to Quote |
| A02-308 | XT-39 STABBING GUIDE FOR 4 15/16” T.J. | 12.00 | Add to Quote |
| A02-309 | XT-43 STABBING GUIDE FOR 5 3/8” T.J | 11.50 | Add to Quote |
| A02-119 | 4 1/2” PH-6™ 15.50# STABBING GUIDE | 11.50 | Add to Quote |
| A02-143 | 4 1/2” XH STABBING GUIDE FOR 6 ¼” T.J. | 14.50 | Add to Quote |
| A02-144 | 4 1/2” IF STABBING GUIDE FOR 6 3/8” T.J. | 14.25 | Add to Quote |
| A02-145 | 5” PH-6™ 20.30# STABBING GUIDE | 13.00 | Add to Quote |
| A02-146 | 5 1/2” PH-6™ 23.00# STABBING GUIDE | 13.00 | Add to Quote |
| A02-147 | 4 1/2” IF STABBING GUIDE FOR 6 5/8” T.J. | 14.00 | Add to Quote |
Rubber Only
| Part No. | Description | Weight | |
|---|---|---|---|
| A02-120 | 3/4” CS® STABBING GUIDE | 5.00 | Add to Quote |
| A02-121 | 1” CS® STABBING GUIDE | 4.50 | Add to Quote |
| A02-122 | 1 1/4” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-123 | 1 1/2” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-124 | 2 1/16” CS® STABBING GUIDE | 6.50 | Add to Quote |
| A02-125 | 2 3/8” CS® STABBING GUIDE | 6.00 | Add to Quote |
| A02-126 | 2 3/8” PH-6™ STABBING GUIDE | 6.00 | Add to Quote |
| A02-127 | 2 7/8” CS® STABBING GUIDE | 7.00 | Add to Quote |
| A02-128 | 2 7/8” PH-6™ 7.90# STABBING GUIDE | 6.50 | Add to Quote |
| A02-129 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-130 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (LARGE BODY) | 11.00 | Add to Quote |
| A02-131 | 2 7/8” 8RD 6.50# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-132 | 2 7/8” 8RD 6.50# STABBING GUIDE (LARGE BODY) | 10.50 | Add to Quote |
| A02-133 | 3 1/2” CS® 9.30# – 10.30# STABBING GUIDE | 10.00 | Add to Quote |
| A02-134 | 3 1/2” PH-6™ 12.95# STABBING GUIDE | 9.50 | Add to Quote |
| A02-136 | 3 1/2” IF STABBING GUIDE FOR 4 ¾” T.J. | 12.00 | Add to Quote |
| A02-357 | 3 1/2” IF STABBING GUIDE FOR 4 7/8” T.J. | 12.00 | Add to Quote |
| A02-136-1 | 4” F.H. STABBING GUIDE FOR 5 ¼” T.J | 12.00 | Add to Quote |
| A02-356 | XT-39 STABBING GUIDE FOR 4 7/8” T.J. | 12.00 | Add to Quote |
| A02-358 | XT-39 STABBING GUIDE FOR 4 15/16” T.J. | 12.00 | Add to Quote |
| A02-359 | XT-43 STABBING GUIDE FOR 5 3/8” T.J. | 11.50 | Add to Quote |
| A02-138 | 4 1/2” PH-6™ 15.50# STABBING GUIDE | 11.50 | Add to Quote |
| A02-139 | 4 1/2” XH STABBING GUIDE FOR 6 ¼” T.J. | 14.50 | Add to Quote |
| A02-148 | 4 1/2” IF STABBING GUIDE FOR 6 3/8” T.J. | 14.25 | Add to Quote |
| A02-141 | 5” PH-6™ 20.30# STABBING GUIDE | 13.00 | Add to Quote |
| A02-142 | 5 1/2” PH-6™ 23.00# STABBING GUIDE | 13.00 | Add to Quote |
| A02-140 | 4 1/2” IF STABBING GUIDE FOR 6 5/8” T.J. | 14.00 | Add to Quote |
